| اسم العلامة التجارية: | customized |
| رقم الطراز: | وفقا لملف المشروع الخاص بك |
| الـ MOQ: | مفتوح للمناقشة |
| السعر: | open to negotiate |
| شروط الدفع: | ر/ر |
| القدرة على التوريد: | 100،0000 قطعة |

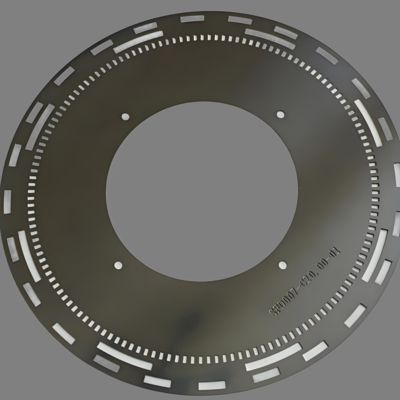

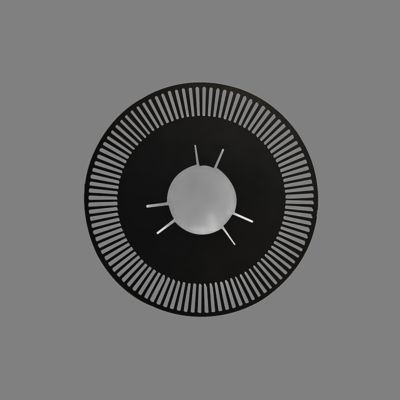

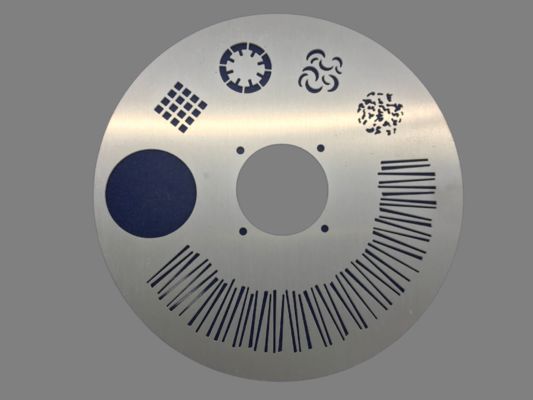

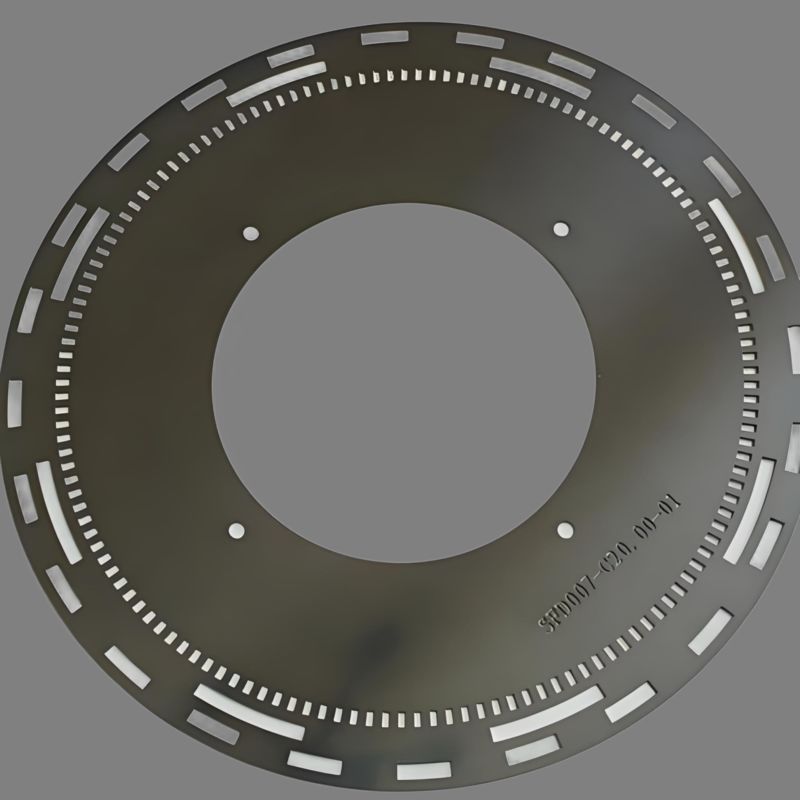

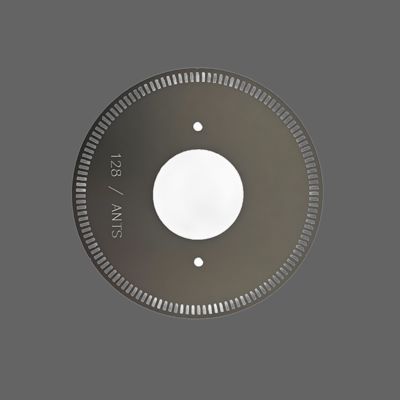

Chemical etching stainless steel encoder disk for optical encoder sensor
Encoder specification:
| Machining Type | photo chemical etching stainless steel precision optical encoder disk |
| Material Capabilities | Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Aluminum, Alloy (Thickness from 0.03 mm up to 1 mm) |
| Product Dimension | 220*280 mm |
| Product precision | 0.01 |
| Smallest open hole | D= 0.1mm when Thickness range from 0.03mm to 0.05mm 1.5*Thickness |
| Centre to Centre for holes | 1.5*Thickness |
| Surface treatment | Surface treatment |
Photo Etching is flexible, highly accurate and effective at any volume. The photo etching process is known by many names, including chemical etching, acid etching and photo chemical machining (PCM).
Metal Selection
Xinhaisen offer a huge range of metals for etching including: Stainless Steels, Carbon Spring Steels, Copper, Brass, Nickel Silver, Mild steel, Phosphor Bronze, Silver, Beryllium Copper, Aluminium, Nickel, Mu Metal, Alloy 42, Alloy 52 & Many Others.
Benefits of Photo Etching
