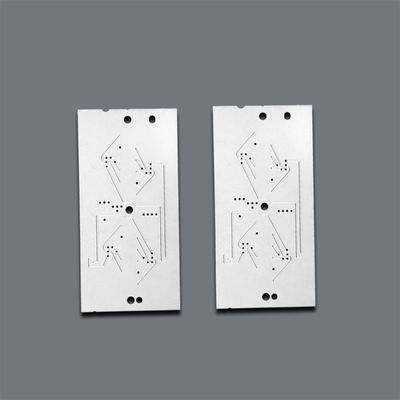

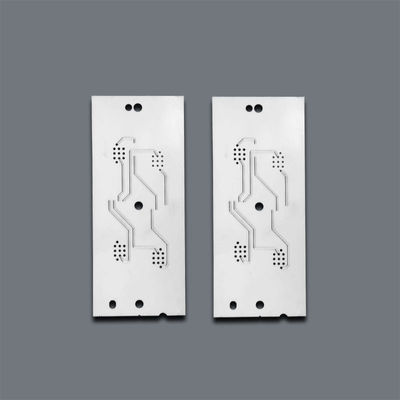

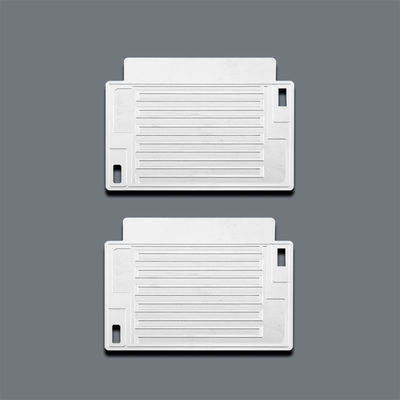

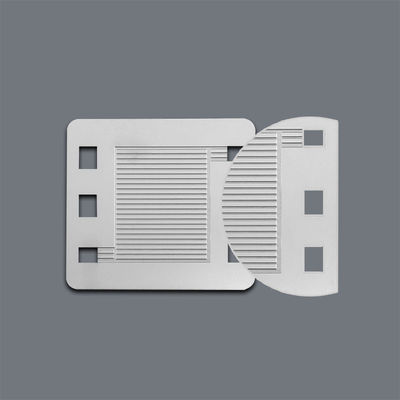

Aluminium Photo Chemical Etching 0.1mm–1.0mm Precision Lightweight Bipolar Plates for Aerospace
Xinhaisen specializes in precision aluminium photo chemical etching, providing high-quality metal etching services for lightweight and high-performance components. Our etched aluminium bipolar plates are just one example of our expertise — widely used in aerospace fuel cells, heat exchangers, and electronic cooling systems, where fine flow channels, corrosion resistance, and ultra-thin structures are required.
|
|
|
Aluminum Etched Bipolar Plate Specifications
| Material Options: | Aluminium 1050, 1060, 3003, 5052, 6061, 7075, and other customized alloys. |
| Thickness Range: | 0.1mm – 1.0mm (other thicknesses available upon request) |
| Maximum Sheet Size: | Up to 600mm × 1800mm |
| Tolerances: | ±0.02mm for critical features |
| Surface Finish: | Clean, burr-free, oxide-free; optional anodizing or passivation available |
Besides aluminium etching, we offer chemical etching for:
Stainless Steel: SUS301, SUS304, SUS316L
Copper & Copper Alloys: C1100, C2680, C5191
Titanium & Nickel: For high-corrosion and heat-resistant applications
Other Processes: Half-etching, folding lines, surface texturing, electroplating, and adhesive lamination
Etching Accuracy: ±0.02mm
Minimum Line Width/Spacing: 0.05mm
Max Sheet Size: 600mm × 800mm (reel-to-reel continuous etching also available)
Design Support: Rapid prototyping based on customer CAD drawings
Production Volume: From small-batch samples to mass production
Bipolar plates for fuel cells and heat exchangers
Micro heat dissipation fins and cold plates
Electronic shielding covers (EMI/RFI shields)
Precision meshes and filters
Lead frames, connectors, and battery current collectors
Bipolar plates for fuel cells and heat exchangers
Micro heat dissipation fins and cold plates
Electronic shielding covers (EMI/RFI shields)
Precision meshes and filters
Lead frames, connectors, and battery current collectors
13+ years of experience in precision metal photo etching
ISO-certified facility with strict quality control standards
Fast turnaround: Prototype delivery in as little as 3 days
Comprehensive one-stop service: From design support to final surface treatment
Global supply capability: Trusted by aerospace, electronics, and energy industries worldwide
|
|
|
|
|
|
