| اسم العلامة التجارية: | XHS/ Customized |
| رقم الطراز: | XHS/ مخصصة |
| الـ MOQ: | 10 |
| السعر: | 80-100USD |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على التوريد: | 10000-100000pcs / الأسبوع |

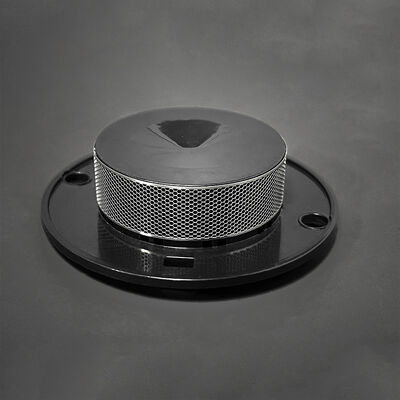

Photochemical Etching Supplier for Custom Etched Micro Perforated Metal Smoke Detector Mesh
|
We are a professional photochemical etching supplier specializing in custom micro-perforated metal meshes for smoke detector and fire safety applications. By using advanced photo chemical etching technology, we produce high-precision, burr-free metal meshes with consistent micro apertures, ensuring reliable airflow, fast smoke response, and long-term stability. |
|
| Material: | Stainless Steel (SUS 304/316), Nickel, or Custom Alloys |
|
Thickness Range: |
0.05 mm – 0.5 mm (customizable) |
|
Dimensions: |
As per customer design or standard sizes |
|
Hole Size: |
As small as 25 microns |
|
Pattern Tolerance: |
±0.01 mm |
| Mesh Types: |
Round, square, or custom-designed openings |
|
Surface Finish: |
Clean, burr-free, optional passivation |

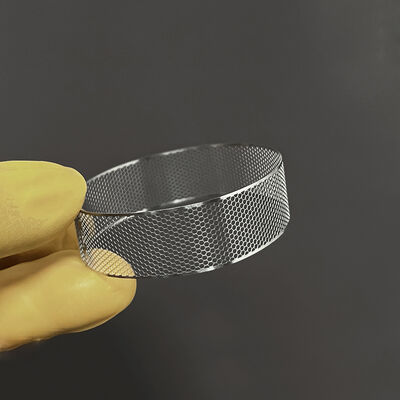

Metal Mesh for Smoke Detector We Etch:
|
|
|
Photochemical etching is an ideal process for smoke detector mesh manufacturing because it offers:
Ultra-fine and uniform micro holes without burrs or sharp edges
No heat-affected zones or mechanical stress
Excellent repeatability for high-density perforation patterns
Stable dimensional accuracy for thin metal materials
Compared with stamping or laser cutting, chemical etching provides cleaner apertures and better airflow consistency.
Our etched smoke detector meshes support:
Round, square, slot, or customized micro apertures
High open-area designs for optimized smoke entry and sensitivity
Tight tolerances to ensure consistent detector performance
Complex or multi-zone perforation patterns if required
Hole size, pitch, thickness, and layout can be fully customized according to detector design and certification requirements.
With strong photochemical etching expertise, strict quality control, and flexible customization capability, we deliver reliable etched metal mesh solutions that meet the demanding requirements of smoke detection applications.
